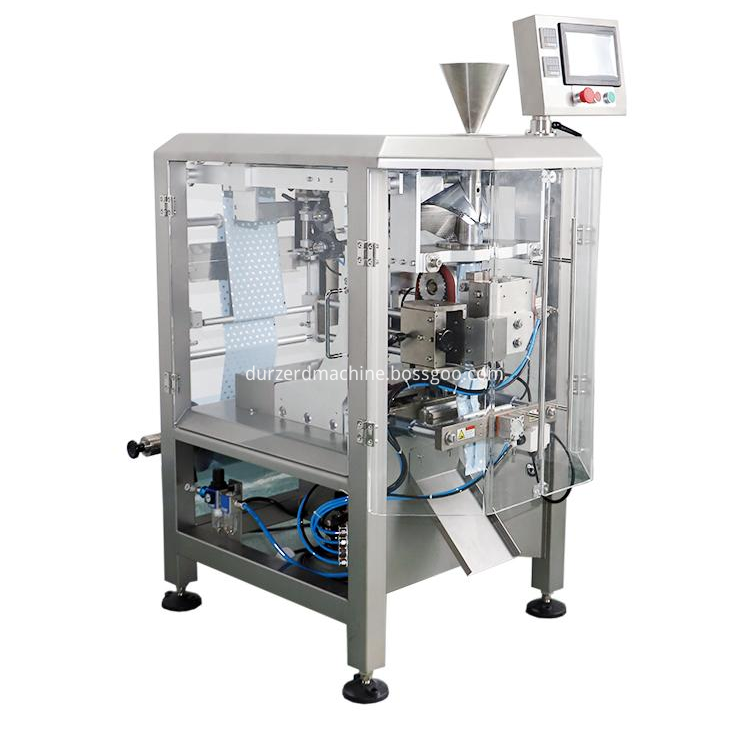

Automatic Food Grain Packing Machine

Automatic Food Grain Packing Machine

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean,Land
    Place of Origin: China
    Port: SHANGHAI

Product Description

Brief Introduction:

Food Grains Packing Machine includes rice Packing Machine, corn packing machine, wheat packing machine and beans packing machine, etc. This machine is equipped with 14 multihead weigher. This Automatic Grain Packing Machine is composed of one weighing machine, one vertical Granule Packing Machine, one platform and one Granule Z Type Elevator. It integrates the functions of feeding, metering, bag-making, packaging, sealing, printing, punching and countering, has automatic film position control function,both the horizontal sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine.

Features:

1. A wide range of pouches: Pillow bag

2. High speed: Around 20~100bags/min(according to different weight).

3. Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.

4. Easy to adjust: only about 10 minutes to change different pouches.

5. Frequency control: speed can be adjusted by frequency conversion within the range.

6. High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.

7. World brand electric components and Load cell, accurate weighing with long service life.

Safety and Hygiene:

No film, machine will alarm.

Machine alarm and stop when the inadequate air pressure.

Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygienic construction, the product contact parts are adopted sus304 stainless steel.

APPLICATION:

This packing machine is suitable for granule products, Such as grain, corn, seeds, candy, vegetable and fruit ,etc. This machine can also be customized as Powder Packing Machine or ketchup packaging machine.

automatic grain packing machine

Automatic Grain Packing Machine

wheat packing machine

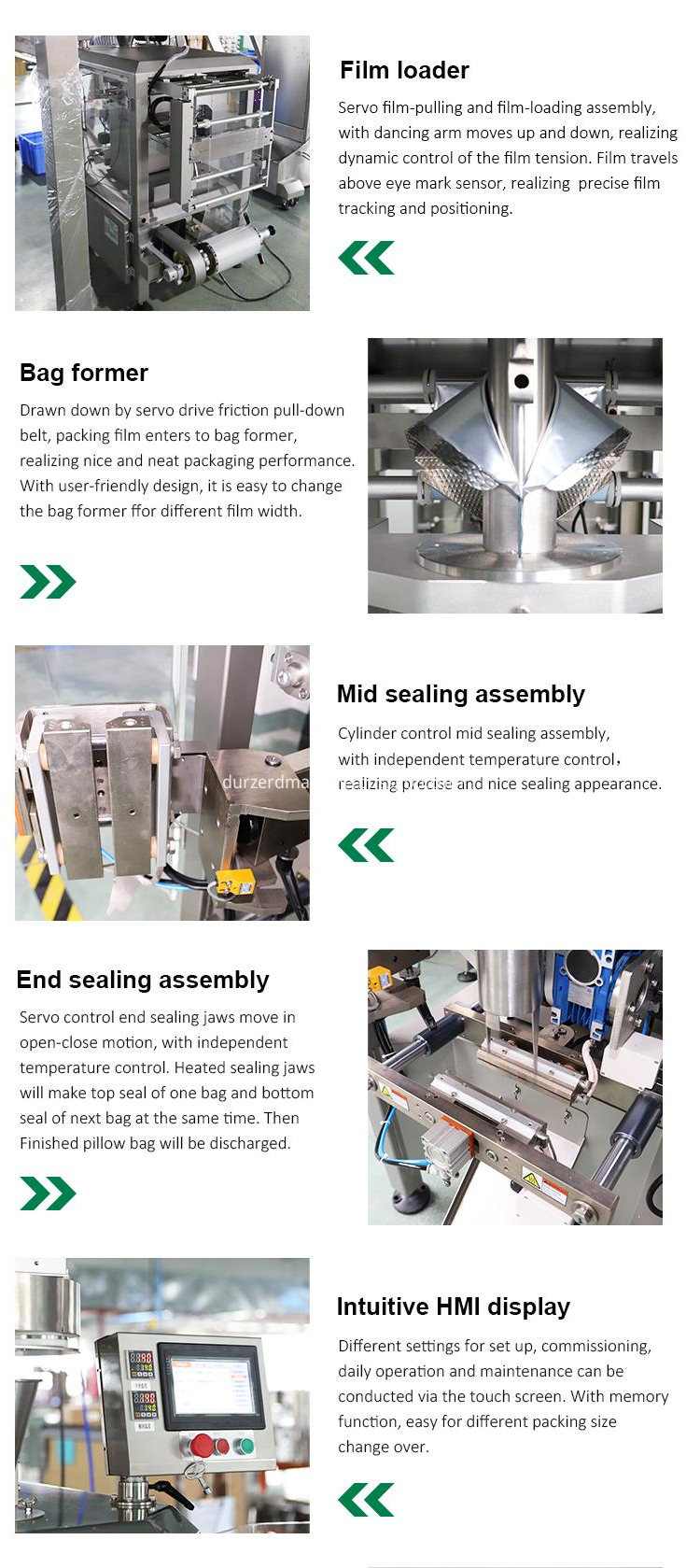

Machine details parts:

food grains packing machine

Work Flow Chart:

Auto Weighing → Film Pulling → Date Printing → Filling→ Bag Forming → Bag Sealing→ Finished Product output

Technical Parameters

Model

ZD-320

Bag type

Pillow bag

Film material

PE,PP,PVC,PS,EVC,PET,PVDC/PVC,OPP/CPP

Speed

20 to 100 bags/min

Film Width

120-320mm

Film thickness

0.06-0.12mm

Bag size

L:50-190mm W:50-1520mm

Electrical

220V/50Hz, 1phase or per customer specification

Power

4KW

Air Pressure & Consumption

6kg/cm2 80L/min

Footprint

1200 x 910 X 1485 mm

Machine Weight

350kgs
