Automatic golf tees logo pad printing machine

  • Automatic golf tees logo pad printing machine
  • Automatic golf tees logo pad printing machine
  • Automatic golf tees logo pad printing machine
  • Automatic golf tees logo pad printing machine

Automatic golf tees logo pad printing machine

    Packaging: Plyood case
    Productivity: 20P/M
    Brand: HY
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 20P/M
    Certificate: CE
    HS Code: 8443192900
    Port: GZ,SZ

Product Description

Automatic golf tees Pad Printing Machine

Golf Tees Pad Printing Machine 8

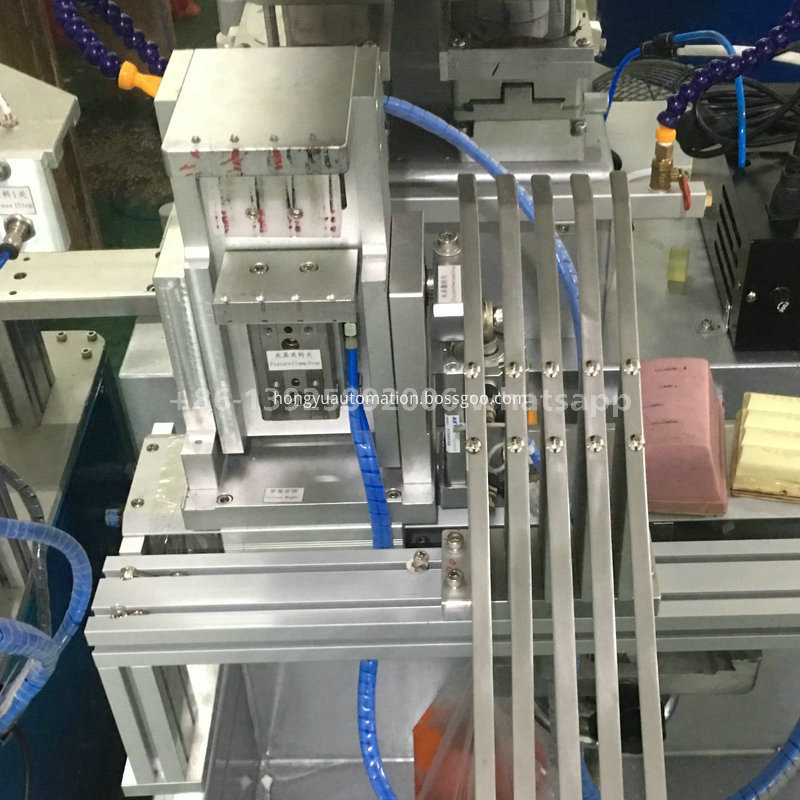

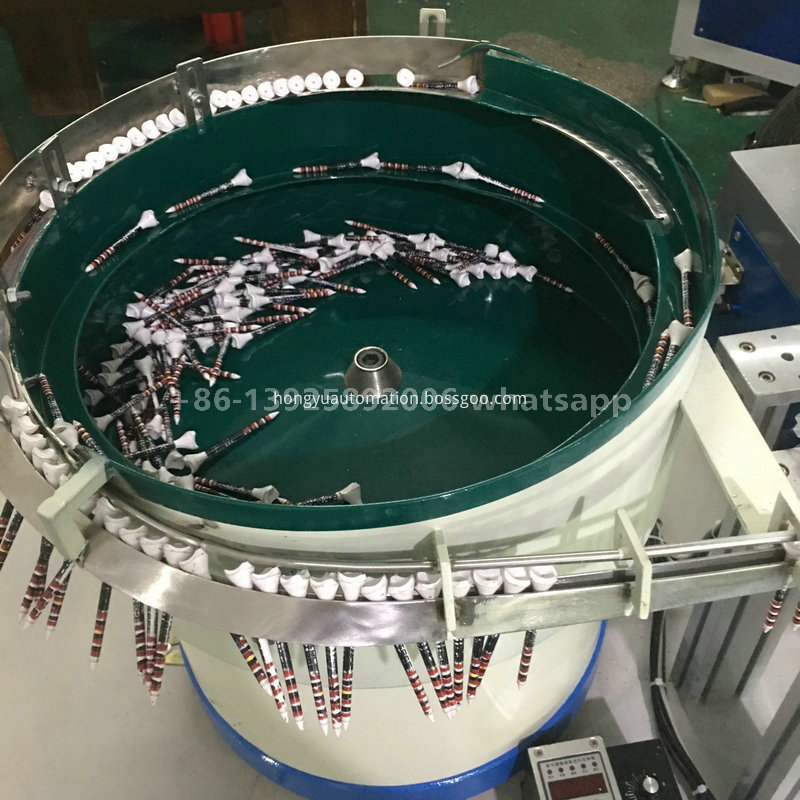

Specialized design for golf tees logo and scale printing, you can print 1-2 color at one time, whole body printing, totally automatic with vibrating dish uploading, unique locking and printing device, can print 4P at one time, no human needed;

Golf Tees Pad Printing Machine 1

Automatic golf tees pad printing machine Specifications:

1. Automatic loading and unloading.
2. PLC controls each function, touch screen operation, simple and convenient.
3. Touch screen features counter, fault alarm information.
4. Reciprocating scraper with oil bottles, ink saving, environmental effect.
5. Printing speed is adjustable to meet different printing requirements.
6. Bench can be adjusted X, or Y, Z-axis direction.
7. Printed tube position is adjustable to accommodate different lengths of printed work piece.
8. Fuselage made of high quality aluminum alloy, light and durable.
9. Built-hydraulic buffers to reduce mechanical vibrations and reduce noise.
Golf Tees Pad Printing Machine 2

Automatic golf tees pad printing machine Technical Parameters:

Plate size

100*250mm

Ink cup diameter

90mm

Pad angle adjust

360 degree

Worktable angle adjust

±5 degree

Suitable golf tee length

50-90mm

Print speed

800 cycles/hr

Air pressure

5 - 7 bar

Air consumption

0.82Litre / Circle

Power supply

110/220V

Power rate

1500W

Machine size

1600*1500*1600m

Machine weight

200KG

Golf Tees Pad Printing Machine 6

Automatic golf tees pad printing machine Print sample

Golf Tees Pad Printing Machine 5
